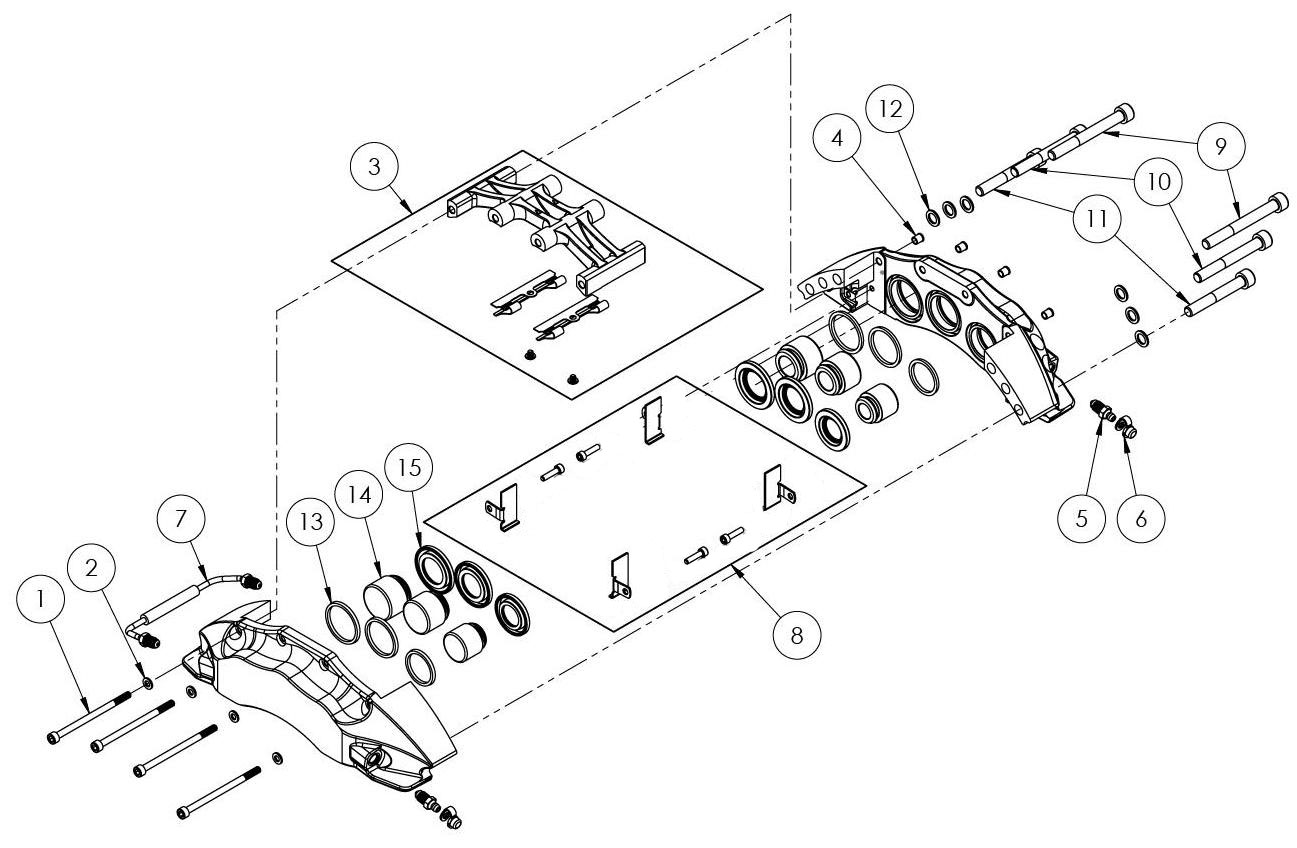

Gen4 Calipers
w/o Abutment Blocks
|
Item #
|
Description
|
Part #
(for 32mm width calipers) |
Part #
(for 35mm width calipers) |
|
1
|
Bridge Bolt
|
40.6B0.6095
|
40.6B0.6097
|
|
2
|
Bridge Bolt Washer
|
40.220.0002
|
40.220.0002
|
|
3
|
ST-60 Bridge (Red)
|
32.639.N107 | 32.649.N107 |
|
ST-60 Bridge (Black)
|
32.639.N105 | 32.649.N105 | |
|
ST-60 Bridge(Silver)
|
32.639.N106 | 32.649.N106 | |
|
|
ST-60 Bridge (Blue)
|
32.639.N102 | 32.649.N102 |
|
ST-60 Bridge (Yellow)
|
32.639.N108 | 32.649.N108 | |
|
4
|
TIME-SERT M6x1.0
|
40.160.0001
|
40.160.0001
|
|
5
|
Bleed Screw
|
41.000.0011
|
41.000.0011
|
|
6
|
Bleed Screw Cap
|
780.09450
|
780.09450
|
|
7
|
Crossover Tube
|
41.400.0105
|
41.400.0106
|
|
8
|
Abutment Plate Kit
|
89.030.0012 |
89.030.0012 |
|
9
|
Body Bolt, M10x80
|
40.6B1.0080
|
40.6B1.0080
|
|
10
|
Body Bolt, M10x75
|
40.6B1.0075
|
40.6B1.0075
|
|
11
|
Body Bolt, M10x70
|
40.6B1.0070
|
40.6B1.0070
|
|
12
|
Body Bolt Washer, M10
|
40.220.0003
|
40.220.0003
|
StopTech ST-60 Gen4 calipers use application-specific piston sizing, with pistons ranging in diameter from 26mm to 46mm. These are typically staggered, with larger trailing pistons used. Thus, pistons are NOT all the same size. ST-60 Gen4 calipers use "tall" pistons, 32mm in length. Pressure Seals (#13), Pistons (#14), and Dust Boots (#15) may be ordered here: Rebuild Parts
Brake pads may be ordered here: ST-60 Pads
All other ST-60 Gen4 hardware is listed below.
Abutment plate kit for ST-60 caliper (Gen4 only) UNAVAILABLE
StopTech pad abutment plate kit for Gen4 ST-60 and STR-60 Trophy Sport caliper. Contains four stainless steel abutment plates (2…
- Manufacturer
- StopTech
- Model
- 89.030.0012
Banjo bolt - M10x1.0 threads, 20mm shank, 29.5mm overall length for StopTech calipers (1 in stock)
Banjo bolt - M10x1.0 threads, 20mm shank, 29.5mm overall length…
- Manufacturer
- StopTech
- Model
- 772.21707
Bleed screw cap for StopTech calipers (BACKORDERED)
Rubber bleed screw cap for StopTech brake calipers. Sold individually.…
- Manufacturer
- StopTech
- Model
- 780.09450
Bleed screw for StopTech calipers - M10x1.0mm
Replacement bleed screw for StopTech brake calipers, including ST-60, ST-43, ST-42, ST-41, ST-40, ST-22. Overall length 29mm, base of hex…
- Manufacturer
- StopTech
- Model
- 41.000.0011
Brake pad wear sensor for StopTech big brake kit calipers
Adapt your vehicle's pad wear monitoring system to work with StopTech big brake kit calipers. Order the same quantity as…
- Manufacturer
- StopTech
- Model
- 68.000.0008
Crossover tube for ST-40, ST-45, ST-60, ST-65 (32mm thick rotors) Supersedes 41.400.0005 (UNAVAILABLE)
StopTech crossover tube for Gen2 through Gen4 ST-40, ST-45, and ST-60 calipers - 32mm thick rotors. 131.5mm between hole centers.…
- Manufacturer
- StopTech
- Model
- 41.400.0105
Crossover tube for ST-40, ST-45, ST-60, ST-65 (35mm thick rotors) Supersedes 41.400.0006 (5 in stock)
StopTech crossover tube for ST-40, ST-45, and ST-60 calipers - 35mm thick rotors. 134.5mm between hole centers. These will not…
- Manufacturer
- StopTech
- Model
- 41.400.0106
Crush Washers (QTY 4) for StopTech calipers - Copper, 10mm ID, 15mm OD, 1.25mm Thick UNAVAILABLE
10mm copper crush washers for StopTech calipers. 10mm ID, 15mm OD, 1.25mm Thickness. Quantity 4…
- Manufacturer
- StopTech
- Model
- 41.604.4516K
Jet Nut Washers M12, 18mm OD, 12mm ID (Qty 2)
Washers (QTY 2) for StopTech Jet nuts. Also used with StopTech ST-22 and ST-45 caliper mounting bolts and caliper body…
- Manufacturer
- StopTech
- Model
- 40.220.0001K
Jet Nuts 7/16x20 for mounting StopTech calipers (Qty 2) UNAVAILABLE
Jet Nut, 7/16x20 Self Locking, Gold Cad plated. Used to attach StopTech caliper to mounting bracket (Pair)…
- Manufacturer
- StopTech
- Model
- 40.440.0001K
Pad retaining spring (Pack of 10) for ST-60 caliper bridge (2 springs required per bridge) UNAVAILABLE
Pad retaining spring for StopTech ST-60/STR-60 caliper bridge - 2 springs required per bridge…
- Manufacturer
- StopTech
- Model
- 42.100.0080K
