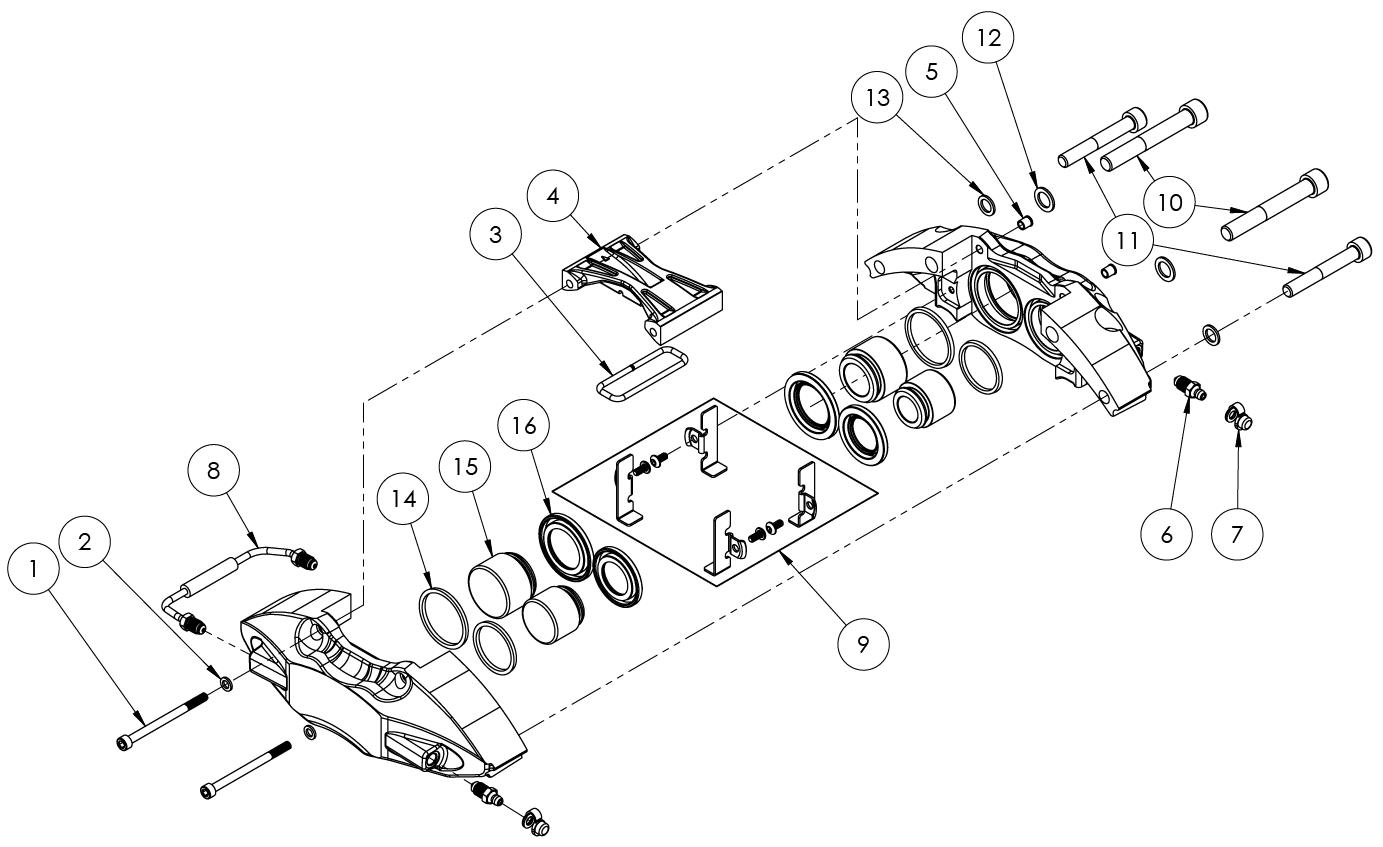

Hardware for ST-41
4-piston painted calipers
|
Item #
|
Description
|
Part # (for 25mm width calipers) |
Part #
(for 28mm width calipers) |
Part #
(for 32mm width calipers) |
|
1
|
Bridge Bolt
|
40.6B0.6085 |
40.6B0.6085
|
40.6B0.6090
|
|
2
|
Bridge Bolt Washer
|
40.220.0002 |
40.220.0002
|
40.220.0002
|
|
3
|
Pad Spring Clip/Retainer
|
42.200.0001 |
42.200.0002
|
42.200.0003
|
|
4
|
ST-41 Bridge
|
32.519.NN05 | 32.529.NN05 | 32.539.NN05 |
|
5
|
TIME-SERT M6x1.0
|
40.160.0001 |
40.160.0001
|
40.160.0001
|
|
6
|
Bleed Screw
|
41.000.0011 |
41.000.0011
|
41.000.0011
|
|
7
|
Bleed Screw Cap
|
780.09450 |
780.09450
|
780.09450
|
|
8
|
Crossover Tube
|
41.400.0010 |
41.400.0108
|
41.400.0109
|
|
9
|
Abutment Plate Kit
|
89.030.0002 | 89.030.0002 | 89.030.0002 |
|
10
|
Body Bolt (M12)
|
40.090.1012
|
40.090.1012
|
40.090.1012
|
|
11
|
Body Bolt (M10)
|
40.6B1.0070
|
40.6B1.0070
|
40.6B1.0080
|
|
12
|
Body Bolt Washer (M12)
|
40.220.0001
|
40.220.0001
|
40.220.0001
|
|
13
|
Body Bolt Washer (M10)
|
40.220.0003
|
40.220.0003
|
40.220.0003
|
StopTech ST-41 calipers have application-specific piston sizing that can range from 26mm to 42mm diameter. Pressure Seals (#13), Pistons (#14), and Dust Boots (#15) may be ordered here: Rebuild Parts
Brake pads may be ordered here: ST-41 Pads
All other ST-41 hardware is listed below.
Brembo bleed screw cap for big brake kit and OEM calipers
Brembo rubber bleed screw cap for various OEM and Brembo big brake kit calipers. May also be used for StopTech…
- Manufacturer
- Brembo
- Model
- 05150220
Brembo bleed screw for big brake kit and OEM calipers - M10x1.0mm
Brembo replacement bleed screw for various OEM and Brembo big brake kit calipers. May also be used for StopTech calipers.…
- Manufacturer
- Brembo
- Model
- 05281213
Jet Nut Washers M12, 18mm OD, 12mm ID (5 sets in stock)
Washers (QTY 2) for StopTech Jet nuts. Also used with StopTech ST-22 and ST-45 caliper mounting bolts and caliper body…
- Manufacturer
- StopTech
- Model
- 40.220.0001K
Pad Retaining Clip (for 35mm wide ST-40 caliper or 32mm wide ST-41 caliper) Clip length = 84mm (4 in stock)
Pad retaining clip for ST-40 calipers designed for 35mm thick rotors or ST-41 calipers designed for 32mm thick rotors. This…
- Manufacturer
- StopTech
- Model
- 42.200.0003
